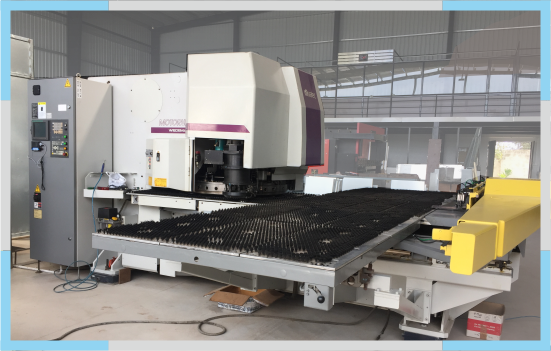

CNC TURRET PUNCH PRESS
A CNC Turret Punch Press is a computer-controlled sheet metal fabrication machine
designed for high-speed punching, forming, embossing, tapping, and marking operations on
sheet metal. It is widely used in industries requiring precision, repeatability, and productivity
in sheet metal processing.
Working Principle
The machine operates by positioning the sheet metal precisely using servo-driven or Mechanical flywheel and a hydraulic clutch, while a rotating turret with multiple punch and die sets. Based on the CNC program, the machine automatically selects the required tool and performs punching or forming operations with high accuracy.
Key Components
* FANUC CNC Controller Executes programmed instructions and controls machine axis moments
* Turret Holds multiple punch holders and die holders for quick tool changes
* Punching Mechanism: AC servo-electric ram for controlled punching force
* Sheet Positioning System: Precision ball screws, linear guides, or rack & pinion and servo motors
* Tooling System: Standard, special, forming, embossing, and tapping tools
* Automation Options: Sheet loaders, unloaders, conveyors, and part sorting systems
Capabilities.
* High-speed punching of holes and contours
* Complex shapes through nibbling operations or auto indexing operation
* Forming operations such as louvers, countersinks, embossing and etc.
* Deburring, ribbing, offset rolling, marking and tappingoperations
* Consistent accuracy with minimal setup time
Advantages
* High productivity and reduced cycle time
* Excellent repeatability and dimensional accuracy
* Flexible tooling for multiple applications
*Easy integration with CAD/CAM software
Applications
* Electrical panels and enclosures
* Cable tray and raceways
* Perforated sieves
*Automotive components
* Elevators and control cabinets
* Furniture and architectural sheet metal parts
* Industrial machinery components
*And more..
A Turret Punch Press is a specialized machine at the heart of sheet metal fabrication and manufacturing processes.
UNFOLDNEST’s Solutions
We specialize in the supply of imported, pre-owned CNC Turret Punch Press machines from renowned Japanese manufacturers such as MURATEC and AMADA. Our services extend beyond machine supply to include complete installation, commissioning, and end-to- end technical service support, ensuring reliable performance throughout the machine lifecycle.
We strongly recommend engaging with us before buying or selling any new or used sheet metal machinery. Our team conducts a detailed evaluation of your application requirements, production capacity, tooling needs, and budget, enabling us to recommend the most suitable, efficient, and cost-effective solution for your operation.
Frequently Supplied Used CNC Turret Punch Press Machines
* MURATEC MOTORUM Series
* MURATEC HYBRID Series
* MURATEC MAGNUM Series

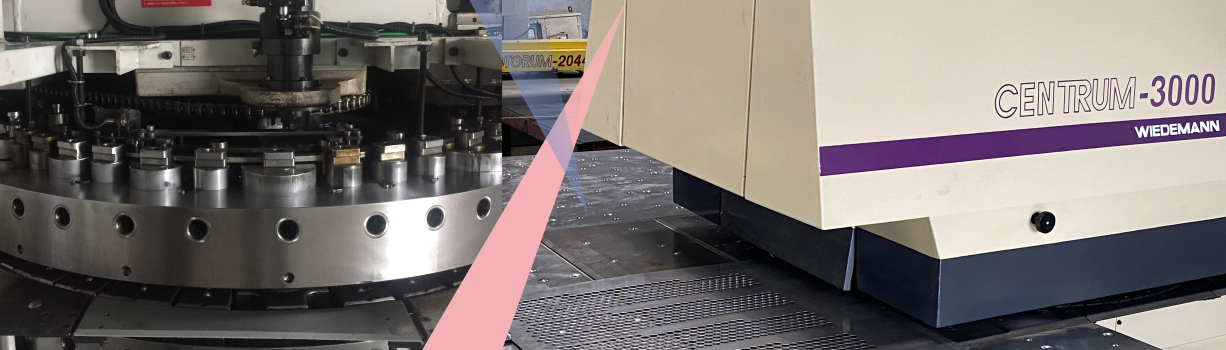

*MURATEC CENTRUM Series
